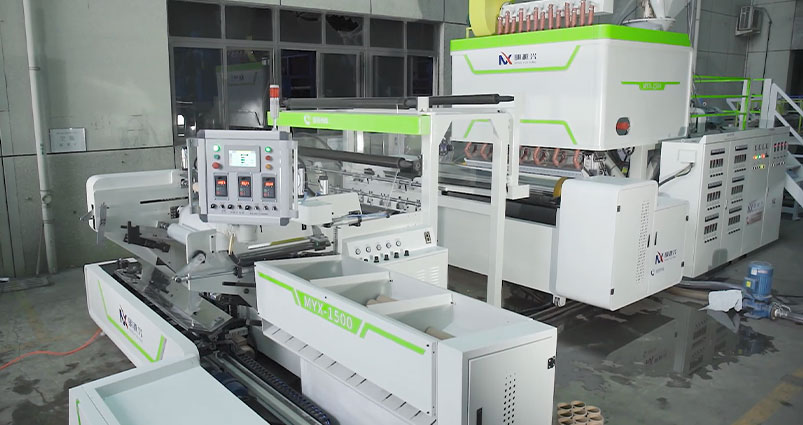

The Stretch Film Manufacturing Machine is carefully designed to produce high-quality single-sided or double-sided adhesive stretch films and mucous membranes using LLDPE, LDPE, or recycled LLDPE materials
The Stretch Film Manufacturing Machine is carefully designed to produce high-quality single-sided or double-sided adhesive stretch films and mucous membranes using LLDPE, LDPE, or recycled LLDPE materials
|
Model |
GT-50/ABA800 |
GT-55/ABA1000 |
GT-60/ABA1200 |
|
Screw Diameter (mm) |
Φ45/50 |
Φ50/55 |
Φ55/60 |
|
Screw Length (L/D) |
30:1 |
30:1 |
30:1 |
|
Film Width(mm) |
200-800 |
250-1000 |
300-1200 |
|
Film Thickness(mm) |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
|
Max.Extrusion Output (kg/h) |
80 |
90 |
100 |
|
Die Size(mm) |
Φ80/150 |
Φ100/200 |
Φ120/250 |
|
Cylinder Cooling (Kw) |
0.13×2 |
0.13×2 |
0.13×2 |
|
Driving Motor(kw) |
11kw/15kw |
15kw/18.5kw |
18.5kw/22kw |
|
Total power(kw) |
50kw |
52kw |
55kw |
|
Cover Dimension L*W*H(m) |
4.2*3.3*4.5 |
4.4*3.5*5 |
4.6*3.6*5.5 |
|
Weight of Machine(kg) |
3000 |
3300 |
3500 |
We have 16 years of experience in foreign trade, and we are very professional and reliable. We have accumulated rich market experience and industry resources, and can provide customers with high-quality services and products. Choose us, you can rest assured that we have the ability to tackle various challenges and achieve satisfactory cooperation between both parties.
