GT-1000

Stretch Film Manufacturing Machine

The GUOTAI brand stands as a beacon of excellence and innovation in the packaging industry, with its high-speed wrapping film machine epitomizing the pinnacle of technological advancement in extrusion blow molding. This machine is meticulously engineered to cater to the...

SUBMIT INQUIRY

Product Description
Main Technical Parameters
Product Highlights

Product Description

Guotai High speed Packaging Film Machine is a device specifically designed for high-speed production of packaging films

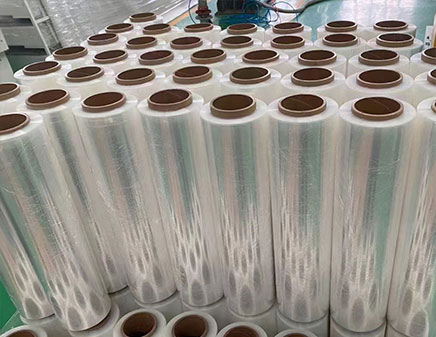

upload/1c/202503/machine-stretch-film-01.jpg

Main Technical
Parameters

model	GT-1000	GT-1300	GT-1700
Applicable to raw materials	LDPE/HDPE/LLDPE	LDPE/HDPE/LLDPE	LDPE/HDPE/LLDPE
Blowing speed	50-120Kg/h	80-150Kg/h	180-250Kg/h
Blow molding thickness	0.01-0.15mm	0.01-0.15mm	0.01-0.15mm
Screw diameter	45mm * 2 + 55mm * 1	52mm * 2 + 65mm * 1	62mm * 2 + 75mm * 1
Screw L/D ratio	30:1	30:1	30:1
Screw speed	15-150 rpm	15-150 rpm	15-150 rpm
Mold hole size	Φ250	Φ320	Φ450
Main motor power	11KW * 2 15KW * 1	15KW * 3	15KW * 2 18.5KW * 1
Film folding diameter	1000mm	1300mm	1700mm
Total power	45KW	55KW	65KW
Machine weight	4000Kg	5000Kg	6000Kg
Machine dimensions	50003000 6000mm	50003500 6500mm	50004000 8000mm
The above configurations can be customized according to customer requirements

Product Highlights

High speed production: able to produce a large amount of packaging film in a short period of time, improving production efficiency.

Automation control: The high-speed packaging film machine is equipped with a precise temperature control system and automation control functions, ensuring production quality

Convenient operation: The device is easy to operate, reducing the technical requirements of operators.

Request Your Machine Quote

Share your production requirements for a tailored solution and competitive pricing from our 38-year specialist team.

Multi-Specification Flexibility
Intelligent Production Line
Robust Factory Capacity
Global Technical Support
