GTPEG-1000 -2000

7-Layer High Barrier Bubble Film Line

We offer a total of 4 models of the PT Bubble Film Machine, which can meet the requirements of different production scales and widths. They are: GTPEG-1000, GTPEG-1200, GTPEG-1500 and GTPEG-2000. These machines can produce bubble films with a maximum length of 1000mm - 2000mm, perfectly adapting to the needs of small-batch customization or large-scale mass production.
SUBMIT INQUIRY
Download
Share:

Product Description

Crafted to advanced manufacturing standards, our PT Bubble Film Making Machine combines practicality, efficiency, and user-friendliness, featuring a precision forming system with high-hardness, wear-resistant rollers for uniform bubbles, consistent thickness, and strong tensile strength; quick-change detachable rollers for fast Ф6-Ф32mm bubble size switching and reduced downtime; an energy-saving variable speed drive (inverter + high-efficiency motor) with stepless 0-50m/min regulation, cutting energy use by 25%+ vs. traditional models; intuitive PLC touchscreen control for precise parameter setting/monitoring, simplifying operation and minimizing errors; and broad compatibility with LDPE, LLDPE, and Recycled PE to enable eco-friendly production and lower raw material costs.

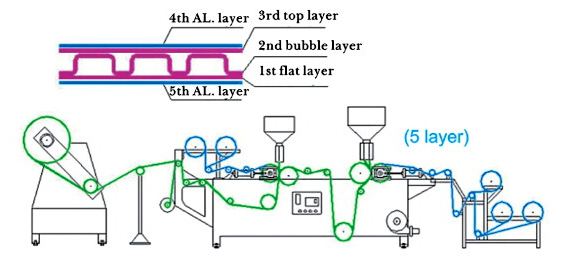

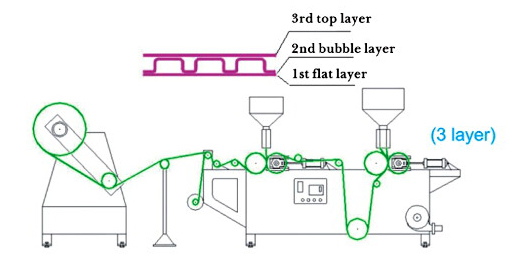

upload/1c/202511/pt-bubble-film-making-machine-2.jpg upload/1c/202511/pt-bubble-film-making-machine-1.jpg

Main Technical
Parameters

Model GTPEG-1000 GTPEG-1200 GTPEG-1500 GTPEG-2000
Main and min Screw Diameter φ60mm φ50mm φ65mm φ55mm φ85mm φ65mm φ95mm φ70mm
L/D 28/1 28/1 28/1 28/1
Film Width 1000mm 1200mm 1500mm 2000mm
Output 120Kg/h 160kg/h 180kg/hour 250kg/hour
Speed 1100m/hour 1100m/hour 1100m/huor 1100m/hour
Total Powe 75Kw 95kw 120kw 165kw
Machine Weight 5T 6T 7T 9T
Technical Parameters are subject to change without prior notice!

Product Highlights

  • Versatile Application: 4 width models + multi-size bubbles meet packaging needs across industries (electronics, food, furniture, logistics, etc.). No extra equipment required for product diversification.
  • Cost-Effective Production: Energy-saving drive system + compatibility with recycled PE materials cuts operational and raw material costs significantly, improving your profit margin.
  • Stable & Reliable Quality: Precision components and intelligent temperature control ensure a 98%+ product qualification rate. Bubbles are full, evenly distributed, and the film has excellent shock absorption and moisture resistance.
  • Easy Operation & Maintenance: Simplified PLC control + durable, low-wear parts reduce labor and maintenance costs. Ideal for both skilled workers and new operators.
  • Eco-Friendly Compliance: Supports recycled PE processing, aligning with global green production trends and helping your business meet environmental regulations.

Ready to upgrade your bubble film production line? Contact us today for a customized quote, technical specifications, or a virtual machine demo! We provide global shipping, professional installation guidance, and after-sales support to ensure a smooth production experience.



Q1: When can I get the price?
A: We typically quote within 8 hours of receiving your inquiry, including customized specifications (e.g., width, raw material type).

Q2: How long is the delivery time?
A: 25-30 days after order confirmation, with optional air freight for urgent EU orders (additional cost applies).

Q3: Do you provide free samples?
A: Low-value samples (≤1m²) are free with freight collect; high-value samples require a nominal charge (refundable upon order placement).

Q4: What is your payment term?
A: 30% down payment before production, 70% balance before shipping (T/T, L/C, or Alibaba Trade Assurance supported).

Optional Equipment

upload/1c/202512/Automatic-cutting,-re-rolling-and-changing-of-rolls.jpg

Automatic cutting, re-rolling and changing of rolls

upload/1c/202512/Automatic-marking-of-examination-papers.jpg

Automatic marking of examination papers

upload/1c/202512/Bubble-roller.jpg

Bubble roller

upload/1c/202512/die-head.jpg

die head

upload/1c/202512/Extrusion-die.jpg

Extrusion die

upload/1c/202512/Extrusion-die-2.jpg

Extrusion die

upload/1c/202512/Intelligent-electrical-cabinet.jpg

Intelligent electrical cabinet

upload/1c/202512/PLC-control.jpg

PLC control

upload/1c/202512/screw.jpg

screw

upload/1c/202512/Trimming-scraps-1.jpg

Trimming scraps

upload/1c/202512/Trimming-scraps-2.jpg

Trimming scraps

upload/1c/202512/Waste-material-recycling.jpg

Waste material recycling
