GT-1500 GT-2000 GT-2500 GT-3000

3-5 Layer Laminated Bubble Film Machine

Guotai’s Plastic Bubble Film Machine series (GT-1500 to GT-3000) is engineered for versatile polyethylene film manufacturing, supporting LDPE/LLDPE raw materials and producing 0.03-0.2mm thick bubble film with widths up to 3000mm. Equipped with high-precision composite rollers and intelligent temperature control, this machine reduces material waste by 15% while ensuring continuous 24-hour operation—ideal for packaging applications in e-commerce, electronics, and furniture industries. Its environmentally friendly process (zero harmful emissions) complies with EU environmental standards, balancing high productivity (450kg/h max output) with sustainable production.
SUBMIT INQUIRY
Download
Share:

Product Description

Our Plastic Bubble film machine includes four major models: GT-1500, GT-2000, GT-2500, and GT-3000. It can cover different production scales in a gradient based on the model, meeting diverse demands ranging from small-batch orders to large-scale mass production. The width range is comprehensive, capable of producing bubble films with the maximum widths of 1500mm, 2000mm, 2500mm, and 3000mm, suitable for various packaging scenarios (such as small electronic products, large furniture, long pipes, etc.). It also supports LDPE/LLDPE granular raw materials and can stably produce ordinary and thickened types of bubble films of different thicknesses (0.03-0.2mm), adapting to different protection strength requirements.

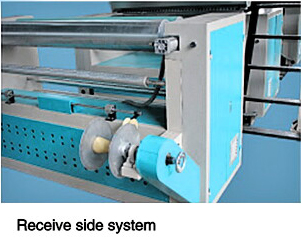

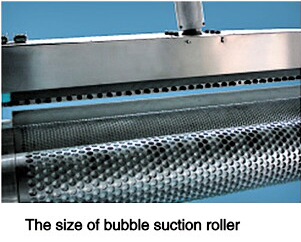

upload/1c/202511/plastic-bubble-film-laminator-3.jpg upload/1c/202511/plastic-bubble-film-laminator-2.jpg
upload/1c/202511/plastic-bubble-film-laminator-3.jpg

Main Technical
Parameters

Model GT-1500 GT-2000 GT-2500 GT-3000
Main Screw dia Φ 80mm Φ 90/80mm Φ 105/90mm Φ 110/100mm
Minor Screw dia Φ 55mm Φ 80mm Φ 90mm Φ 100mm
Finished film width 1500mm 2000mm 2500mm 3000mm
Output 100kg/h 150kg/h 300kg/h 450kg/h
Main motor power 18kw 22kw 45kw 55kw
Minor motor power 15kw 22kw 30kw 45kw
Total power 122kw 200kw 243kw 283kw
L/D 30/1 30/1 30/1 30/1
Power supply 380/3/4/50  VOLT/Ph/line/hz

Product Highlights

1.Speed Redefined for Mass Production

When every meter counts, our high-speed extrusion line delivers unrivaled efficiency. Equipped with Φ95mm precision screws and dual-air ring cooling technology, it achieves a staggering 1100 meters per hour—50% faster than industry benchmarks. For manufacturers scaling to meet surging demand, this means shorter lead times, maximized output, and the power to dominate large-scale packaging contracts without compromising stability.

2.Energy Efficiency That Boosts Your Bottom Line

Why choose between speed and sustainability? Our optimized heating zones with intelligent PID temperature control and insulated barrels cut energy consumption to just 7.2kW/kg—slashing costs by 30%. For mid-sized operations, this translates to €45,000 in annual savings, turning utility bills into reinvestment opportunities. Produce more, spend less, and lead the industry in eco-friendly manufacturing.

3. Versatility Meets Productivity

Adapt or be left behind. Our dual-mode production system lets you switch seamlessly between standard bubble film and high-performance composite film (EVA/POE layers) via a quick-change mold system. Whether you’re packaging fresh produce (FDA-compliant) or industrial goods requiring heavy-duty cushioning, one machine handles it all. Eliminate downtime, expand your product portfolio, and cater to diverse market needs with unmatched flexibility.



4. Global Compliance, Local Confidence



Break down borders with equipment built for international success. Certified to EU 10/2011 food contact standards and ISO 9001:2015 quality management, our extrusion line eliminates import barriers in the EU and US. Reduce audit risks, streamline regulatory approvals, and build trust with partners worldwide. When compliance is non-negotiable, we make global expansion feel local.

FAQ

Q1: When can I get the price?
A: We typically quote within 8 hours of receiving your inquiry, including customized specifications (e.g., width, raw material type).

Q2: How long is the delivery time?
A: 25-30 days after order confirmation, with optional air freight for urgent EU orders (additional cost applies).

Q3: Do you provide free samples?
A: Low-value samples (≤1m²) are free with freight collect; high-value samples require a nominal charge (refundable upon order placement).

Q4: What is your payment term?
A: 30% down payment before production, 70% balance before shipping (T/T, L/C, or Alibaba Trade Assurance supported).

Optional Equipment

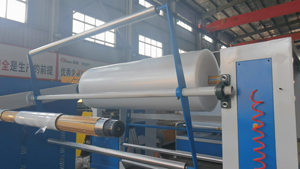

upload/1c/202512/Automatic-cutting,-re-rolling-and-changing-of-rolls.jpg

Automatic cutting, re-rolling and changing of rolls

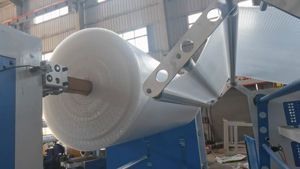

upload/1c/202512/Automatic-marking-of-examination-papers.jpg

Automatic marking of examination papers

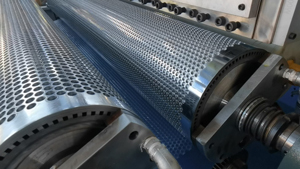

upload/1c/202512/Bubble-roller.jpg

Bubble roller

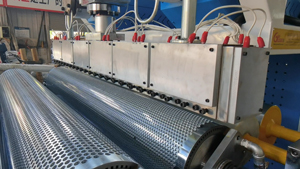

upload/1c/202512/die-head.jpg

die head

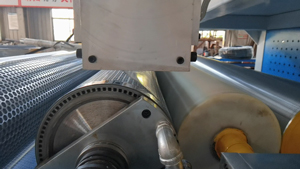

upload/1c/202512/Extrusion-die.jpg

Extrusion die

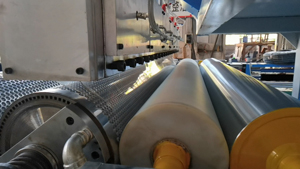

upload/1c/202512/Extrusion-die-2.jpg

Extrusion die

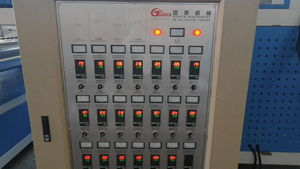

upload/1c/202512/Intelligent-electrical-cabinet.jpg

Intelligent electrical cabinet

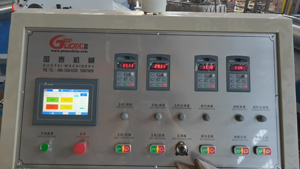

upload/1c/202512/PLC-control.jpg

PLC control

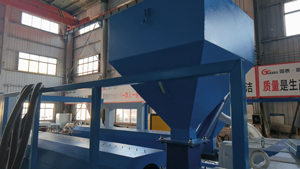

upload/1c/202512/screw.jpg

screw

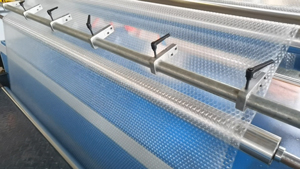

upload/1c/202512/Trimming-scraps-1.jpg

Trimming scraps

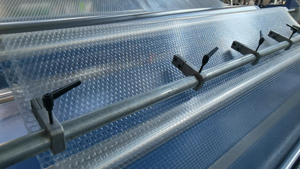

upload/1c/202512/Trimming-scraps-2.jpg

Trimming scraps

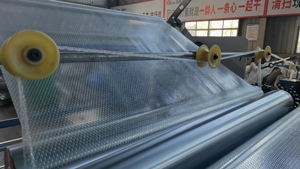

upload/1c/202512/Waste-material-recycling.jpg

Waste material recycling

Request Your Machine Quote
Share your production requirements for a tailored solution and competitive pricing from our 38-year specialist team.
  • Multi-Specification Flexibility
  • Intelligent Production Line
  • Robust Factory Capacity
  • Global Technical Support
