GTPPEG1000-2500

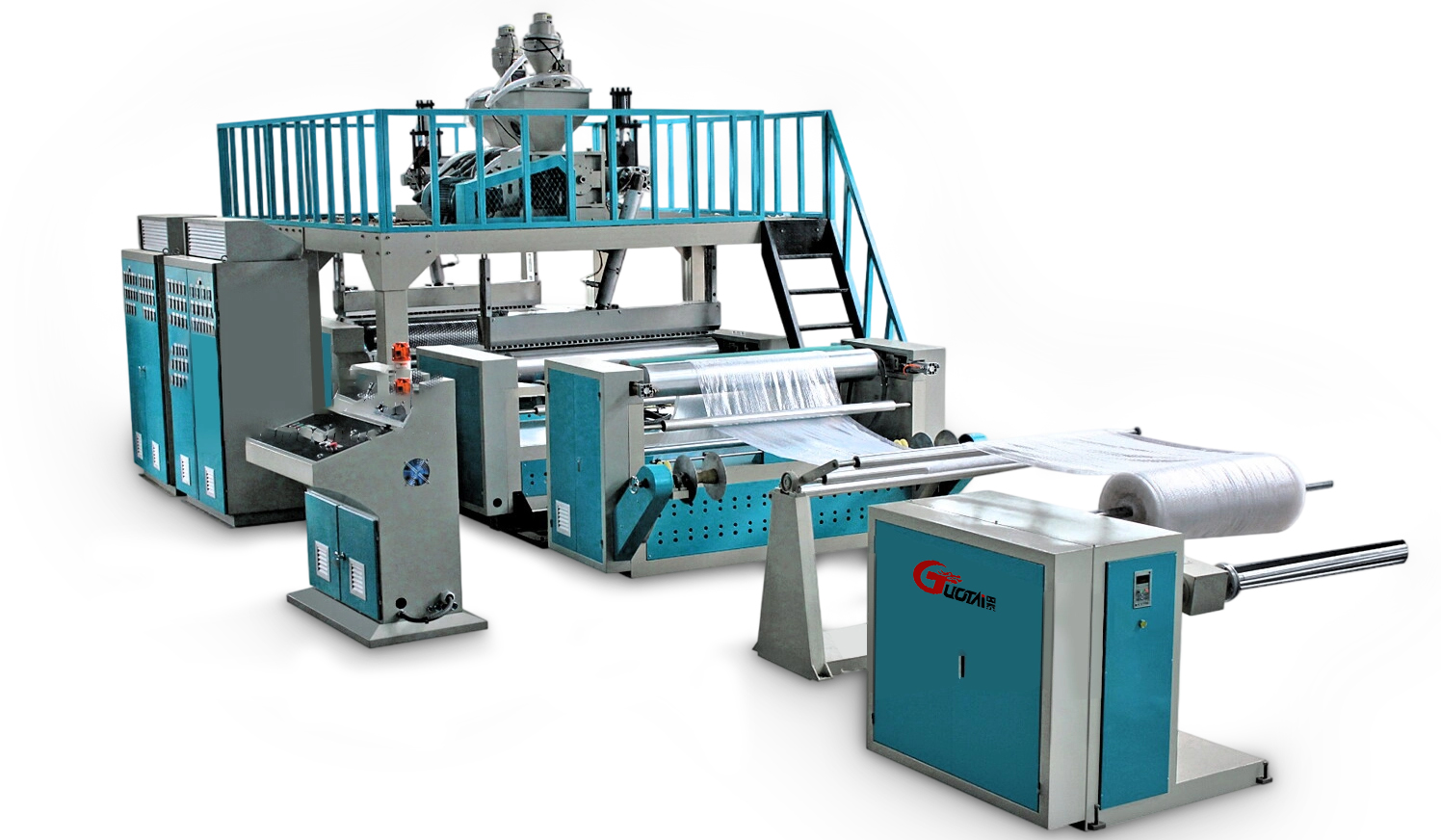

2-Layer High Speed Bubble Film Machine

Guotai’s PE Bubble Film Machine is engineered for high-performance polyethylene film production, integrating multi-layer co-extrusion technology to deliver 1100 meters per hour output. Designed specifically for standard and composite bubble film, this CE-certified extruder reduces energy consumption by 30% compared to conventional models, while ensuring precise bubble formation (6-30mm diameter) for packaging applications in food, electronics, and logistics industries.
SUBMIT INQUIRY
Download
Share:

Product Description

Our PE bubble film machine has 5 models: GTPPEG-1000, GTPPEG-1200, GTPPEG-1500, GTPPEG-2000, and GTPPEG-2500. They can respectively produce PE bubble films with the maximum width ranging from 1000mm to 2500mm, which are suitable for different packaging requirements. These films include both ordinary and composite types, and are applicable for packaging protection in various scenarios such as household items, postal parcels, precision instruments, bicycles, polyurethane furniture, etc. They can meet different production capacity requirements ranging from small-scale production to large-scale mass production.

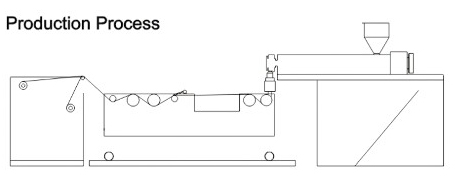

upload/1c/202511/pe-bubble-film-machine-1.jpg

Main Technical
Parameters

Model GTPPEG-1000   GTPPEG-1200    GTPPEG-1500    GTPPEG-2000   GTPPEG-2500
Screw Diameter Φ60mm Φ65mm Φ75mm Φ95mm Φ110mm
L/D 28/1 28/1 28/1 28/1 28/1
Film Width 1000mm 1200mm 1500mm 2000mm 2500mm
Output 50Kg/h 70kg/h 100kg/hour 150kg/hour 180kg/hour
Speed 1100m/hour 1100m/hour 1100m/huor 1100m/hour 1100m/hour
Total Powe 48kw 58kw 68kw 100kw 130kw
Machine Weight 4T 5T 6T 7T 8T

Product Highlights



1.1100m/h High-Speed Extrusion

When every meter counts, our high-speed extrusion line delivers unrivaled efficiency. Equipped with Φ95mm precision screws and dual-air ring cooling technology, it achieves a staggering 1100 meters per hour—50% faster than industry benchmarks. For manufacturers scaling to meet surging demand, this means shorter lead times, maximized output, and the power to dominate large-scale packaging contracts without compromising stability.

2.30% Energy Saving

Why choose between speed and sustainability? Our optimized heating zones with intelligent PID temperature control and insulated barrels cut energy consumption to just 7.2kW/kg—slashing costs by 30%. For mid-sized operations, this translates to €45,000 in annual savings, turning utility bills into reinvestment opportunities. Produce more, spend less, and lead the industry in eco-friendly manufacturing.

3.Dual-Mode Production

Adapt or be left behind. Our dual-mode production system lets you switch seamlessly between standard bubble film and high-performance composite film (EVA/POE layers) via a quick-change mold system. Whether you’re packaging fresh produce (FDA-compliant) or industrial goods requiring heavy-duty cushioning, one machine handles it all. Eliminate downtime, expand your product portfolio, and cater to diverse market needs with unmatched flexibility.

4.CE & ISO 9001 Certified

Break down borders with equipment built for international success. Certified to EU 10/2011 food contact standards and ISO 9001:2015 quality management, our extrusion line eliminates import barriers in the EU and US. Reduce audit risks, streamline regulatory approvals, and build trust with partners worldwide. When compliance is non-negotiable, we make global expansion feel local.

faq:

Q1: When can I get the price?
A: We typically quote within 8 hours of receiving your inquiry, including customized specifications (e.g., width, raw material type).

Q2: How long is the delivery time?
A: 25-30 days after order confirmation, with optional air freight for urgent EU orders (additional cost applies).

Q3: Do you provide free samples?
A: Low-value samples (≤1m²) are free with freight collect; high-value samples require a nominal charge (refundable upon order placement).

Q4: What is your payment term?
A: 30% down payment before production, 70% balance before shipping (T/T, L/C, or Alibaba Trade Assurance supported).

Optional Equipment

upload/1c/202512/Automatic-cutting,-re-rolling-and-changing-of-rolls.jpg

Automatic cutting, re-rolling and changing of rolls

upload/1c/202512/Automatic-marking-of-examination-papers.jpg

Automatic marking of examination papers

upload/1c/202512/Bubble-roller.jpg

Bubble roller

upload/1c/202512/die-head.jpg

die head

upload/1c/202512/Extrusion-die.jpg

Extrusion die

upload/1c/202512/Extrusion-die-2.jpg

Extrusion die

upload/1c/202512/Intelligent-electrical-cabinet.jpg

Intelligent electrical cabinet

upload/1c/202512/PLC-control.jpg

PLC control

upload/1c/202512/screw.jpg

screw

upload/1c/202512/Trimming-scraps-1.jpg

Trimming scraps

upload/1c/202512/Trimming-scraps-2.jpg

Trimming scraps

upload/1c/202512/Waste-material-recycling.jpg

Waste material recycling
