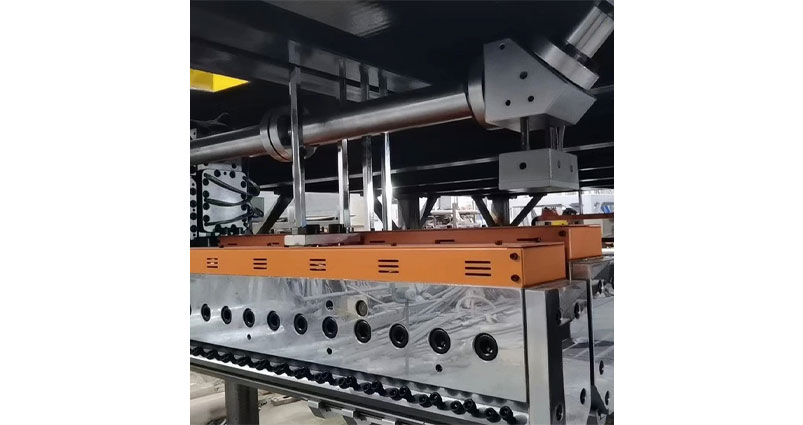

Bubble film machine is a professional equipment used for producing bubble film. The machine extrudes melted plastic into a film, injects air into the film to form bubbles, and finally rolls the bubble film into a roll.
Bubble film is commonly used for packaging fragile items, such as glass products, electronic products, etc., to provide cushioning and protection.
|
Model |
GT-50 |
GT-55 |
GT-65 |
|
Suitable Material |
HDPE LDPE LLDPE |
||
|
Film Width |
800-1200mm |
1000-1500mm |
1200-2000mm |
|
Film Thickness |
0.028-0.2mm |
||
|
Max.Extrusion Output |
120kg/hr |
150kg/hr |
200kg/hr |
|
Screw Diameter |
φ50*3 |
Aφ55 Bφ60 Cφ55 |
Aφ60 Bφ65 Cφ60 |
|
Screw L/D Length |
28:1/30:1 |
||
|
Screw Material |
Sacm-645/38 Crmoala |
||
|
Cylinder Material |
Sacm-645/38 Crmoala |
||
|
Cylinder Cooling |
370w x 2/3 |
370w x 2/3 |
550wx3/3 |
|
Driving Motor |
15kw*3 |
A18.5+B22+C18.5 |
A22+B+C22 |
|
Temperature Control |
3*3 |
||
|
Average Power-consume |
80kw |
95kw |
120kw |
|
Die Size |
280mm |
350mm |
500mm |
|
Temperature Control |
4 |
||
|
Air Ring |
1 |
||
|
Air Blower |
7.5kw |
11kw |
15kw |
|
Roller Width |
1600mm |
2100mm |
2600mm |
|
Take-up Speed |
5-50m/min |
||
|
Take-up Motor |
1.5kw |
2.2kw |
2.2kw |
|
Type |
Surface Friction Type |
||
|
Winding Motor |
1.5kw |
2.2kw |
2.2kw |
|
Winding Speed |
5-50m/min |
||
|
Outline Diameter(LxWxH) |
9.5*4.5*7.5m |
10.5*5*9m |
11.5*5.5*10m |
Guotai Machine's bubble film machine is equipped with the most advanced extrusion and cooling system, and our goal is to produce high-quality bubble films. The extrusion system ensures uniform material flow and consistent formation of bubbles, while the cooling system quickly solidifies the sheet, locking in the shape and size of bubbles
