GT1000

GT1000 2-Layer PE Air Bubble Film Extrusion Machine (1000mm Width)

The GT1000 is our best-selling bubble film machine designed for logistics and furniture packaging. Featuring a specialized screw design, it allows the use of 100% recycled LDPE/LLDPE materials, helping you save up to 30% on resin costs while maintaining high film transparency and strength. Capacity: 70-75 kg/h Operation: 1 Person (PLC Control) Certification: CE, ISO9001

SUBMIT INQUIRY

Download

Air Bubble Wrap Plastic Extruders Machine

Product Description
Main Technical Parameters
Product Highlights

Product Description

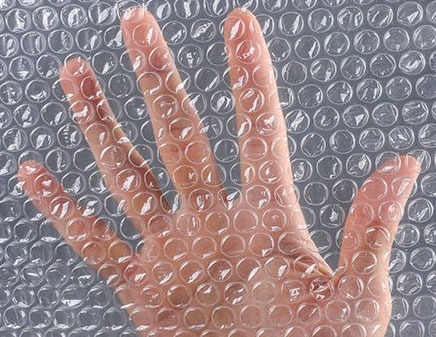

The core function of Guotai GT1000 bubble film plastic extruder is to produce bubble packaging materials. It has precise adjustment capabilities for bubble parameters and customizable attributes for various scenarios: By adjusting the size, depth, shape and spacing of the bubbles, the produced bubble packaging can meet the specific protection requirements of different products, and meet modern diversified packaging scenarios (such as protection scenarios for fragile items, precision instruments, furniture and other different categories).

upload/1c/202511/upload1c202503pro-in-06-1331.jpg

Main Technical
Parameters

Model	GT1000
Screw L/D	28/1
Screw Speed	50-150rpm
Width	200-1500mm
Total Power	130 KW
Thickness	0.01-0.05mm
Capacity	70-75 kg/h
Layer Structure	ABC /ACBCA
Total Weight	11T
Dimension	11000x3600x3800mm

Product Highlights

Save Material Cost :"Features ABC/ACBCA layer structure design, allowing you to use 100% recycled material in the middle layer while keeping the surface shiny and strong.
Intelligent Control :"Equipped with automatic temperature control and winder. One operator can manage the whole line."
Versatile Production :"Adjustable bubble sizes (6mm-30mm). Perfect for producing bubble wraps for electronics, glass, and logistics."

FAQ:

Q1: Can I use recycled material with this machine?

A: Yes! The GT1000 is specifically engineered to handle 100% recycled PE granules. This is a key feature that helps our clients reduce raw material costs significantly compared to machines that only use virgin material.

Q2: What is the warranty period?

A: We provide a 1-year warranty for all core components (Screw, Motor, Gearbox, PLC). We also offer lifetime technical support and 24/7 online assistance via WhatsApp.

Q3: Is it difficult to install the machine?

A: Not at all. The machine is tested before shipment. We provide detailed installation videos and a user manual. For the GT1000, 95% of our clients can set it up within 2 days using our video guide. We can also send engineers on-site if requested.

Q4: How fast can I get the machine?

A: For standard voltage (380V/50Hz), we often have stock or can ship within 15 days. For customized voltage (e.g., 220V/60Hz for Mexico/USA), the lead time is about 25-30 days.

Request Your Machine Quote

Share your production requirements for a tailored solution and competitive pricing from our 38-year specialist team.

Multi-Specification Flexibility
Intelligent Production Line
Robust Factory Capacity
Global Technical Support
